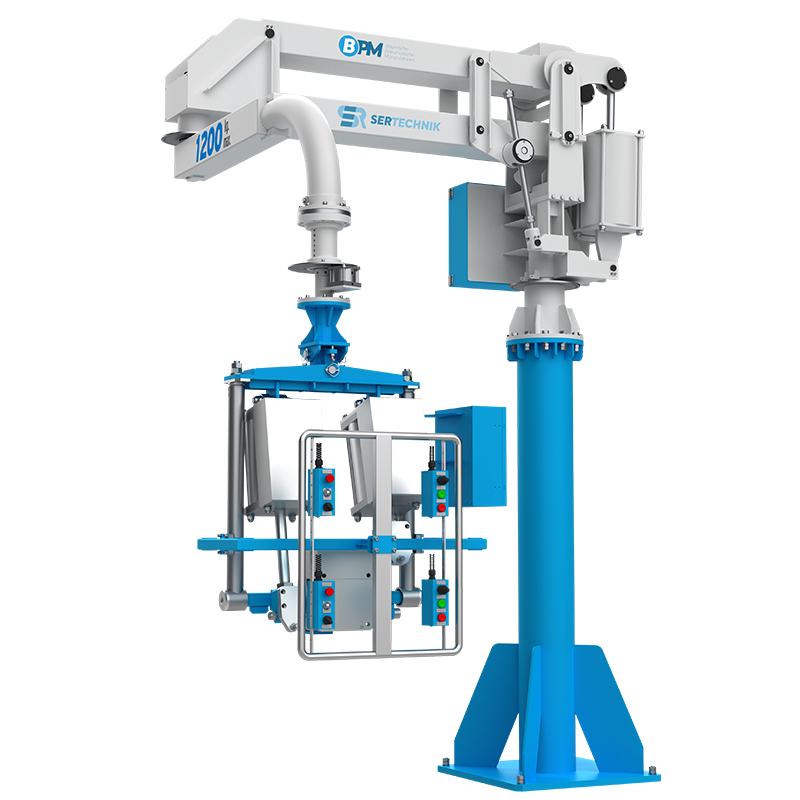

Hercules Pneumatic Manipulators are designed to move operator-centered loads within the work area with minimum effort. It balances the weight of the load, allowing the operator to carry the load quickly and safely.

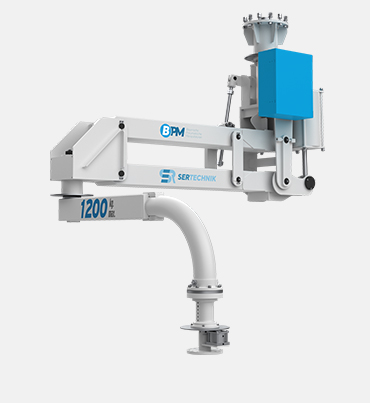

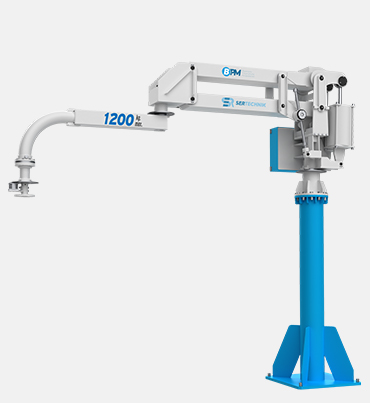

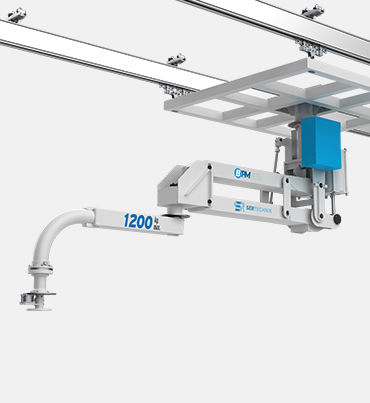

Manipulators, either floor mounted or ceiling mounted. Hercules is equipped with special gripping tools which are particularly suitable to manually handle center offset loads in any direction, in a weightless condition. The manipulator, which consists of two arms, has a total of two brakes on the arm rotation axis. It’s versatile structure allows it to fit in any working environment.

Works with dry, filtrated (40 μm) and oil free compressed air (min. 0.7/0.8 MPa).

1.200 kg max. weight capacity. 4.500 mm max. radius. 2.200 mm vertical lift.
475 nl/min max. air consumption.
